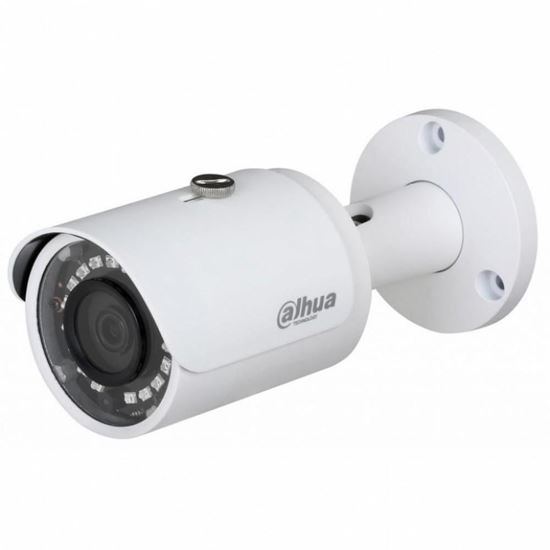

Camera
Image Sensor 1/2.7” 2Megapixel progresive CMOS
Effective Pixels 1920(H) x1080(V)
RAM/ROM 256MB/32MB
Scanning System Progressive
Electronic Shutter Speed Auto/Manual, 1/3~1/100000s
Minimum Illumination 0.08Lux/F2.0( Color,1/3s,30IRE)
0.3Lux/F2.0( Color,1/30s,30IRE)
0Lux/F2.0(IR on)
S/N Ratio More than 50dB
IR Distance Distance up to 30m(98ft)
IR On/Off Control Auto/ Manual
IR LEDs 18
Lens
Lens Type Fixed
Mount Type Board-in
Focal Length 2.8 mm (3.6 mm optional)
Max. Aperture F2.0/F2.0
Angle of View H:104°/92°,V:55°/50°
Focus Control Fixed
Close Focus Distance 0.6m(0.9m)
DORI Distance Lens Detect Observe Recognize Identify
2.8 mm 40(131ft) 16(52ft) 8(26ft) 4(13ft)
3.6 mm 53(174ft) 21(69ft) 11(36ft) 5(16ft)
Intelligence
Event Trigger Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal access, Storage anomaly
IVS Tripwire, Intrusion
Video
Compression H.265/H.264H/MJPEG(Sub Stream)
Smart Codec Support H.265+/H.264+
Streaming Capability 2 Streams
Resolution 1080P(1920×1080)/1.3M(1280×960)/
720P(1280×720)/D1(704×576/704×480)/ VGA(640×480)/CIF(352×288/352×240)
Frame Rate Main Stream: 1080P(1 ~ 25/30fps)
Sub Stream: D1(1 ~ 25/30fps)
Bit Rate Control CBR/VBR
Bit Rate H.265: 12K ~ 6400Kbps
H.264: 32K ~ 10240Kbps
Day/Night Auto(ICR) / Color / B/W
BLC Mode BLC / HLC / DWDR
White Balance Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control Auto/Manual
Noise Reduction 3D DNR
Motion Detection Off / On (4 Zone, Rectangle)
Region of Interest Off / On (4 Zone)
Electronic Image Support
Smart IR Support
Digital Zoom 16x
Flip 0°/90°/180°/270°
Mirror Off / On
Privacy Masking Off / On (4 Area, Rectangle)
Network
Ethernet RJ-45 (10/100Base-T)
Protocol HTTP;HTTPs;TCP;ARP;RTSP;RTP;RTCP;UDP;SMTP;
FTP;DHCP;DNS;DDNS;PPPoE;IPv4/v6;QoS;UPnP;
NTP;Bonjour;IEEE 802.1x;Multicast;ICMP;IGMP;
